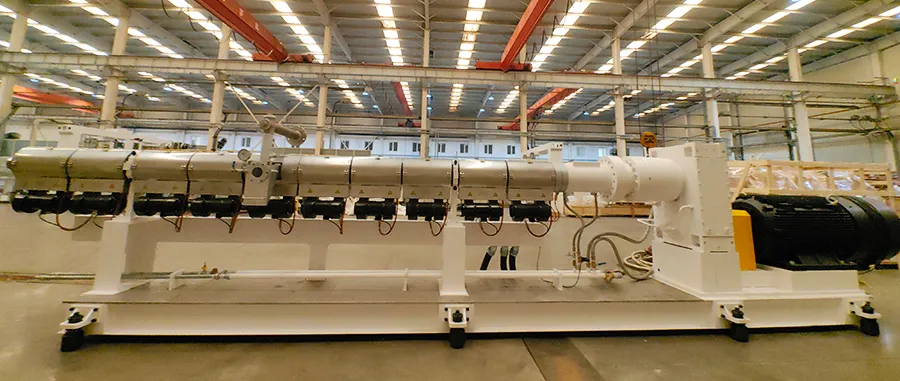

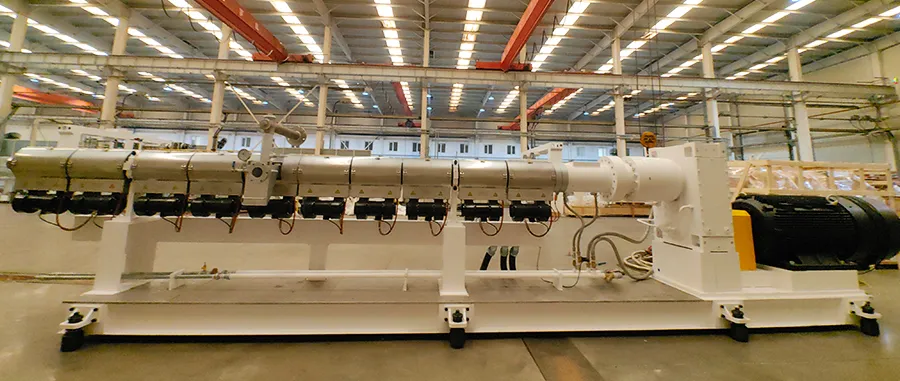

Single-Screw Extruder

Single-screw extruders are extrusion machines widely used in plastic processing, known for their cost-effectiveness, heavy-duty structural stability, and easy operation with minimal maintenance. They are ideal for general-purpose extrusion where consistent output and cost efficiency matter most.

Vented Single-Screw Extruder for PC and PMMA

Suitable for clear materials such as PC and PMMA, especially when producing optical-grade or decorative sheets that have strict requirements regarding surface and transparency. During extrusion, the venting section removes trapped gases and moisture, which helps prevent bubbles and improve the appearance of the finished sheet.

Specifications

Screw Diameter	Output
Ø65 mm	200 kg/h
Ø75 mm	200-300 kg/h
Ø90 mm	300-680 kg/h
Ø110 mm	500-800 kg/h
Ø120 mm	700-900 kg/h
Ø130 mm	800-1000kg/h

Standard Single-Screw Extruder for PP, PE, PS and ABS

These extruders process PP, PE, PS and ABS for the continuous production of food packaging sheets and industrial boards. We offer models for different production scales, with output capacities ranging from 15 kg/h for small runs to 2.3 t/h for large-volume manufacturing.

Specifications

Screw Diameter	Output
Ø30mm	15-20kg/h
Ø40mm	20-30kg/h
Ø45mm	25-35kg/h
Ø50mm	40-60kg/h
Ø60mm	70-100kg/h
Ø65mm	100-200kg/h
Ø75mm	200-300kg/h
Ø90mm	300-680kg/h
Ø100mm	400-750kg/h
Ø110mm	500-800kg/h
Ø115mm	600-850kg/h
Ø120mm	700-900kg/h
Ø130mm	800-1100kg/h
Ø140mm	900-1300kg/h
Ø150mm	1000-1400kg/h
Ø160mm	1200-1500kg/h
Ø180mm	1500-1700kg/h
Ø220mm	1700-2000kg/h
Ø230mm	2000-2300kg/h

Please let us know the material you plan to process and the output you require. Our engineers will then recommend a suitable extruder configuration to improve production stability, thickness consistency and product clarity.

Working Principle

Plastic resin enters through the feed section and moves into the heated barrel. The rotating screw moves the material forward while it is gradually heated, melted and mixed into a uniform melt. Then, the molten resin passes through the die, which forms it into a continuous sheet, board or profile with the required dimensions.

Features

Simple structure for easier operation and maintenance
Lower equipment and operating costs than more complex extruder types
Available in sizes ranging from laboratory units to large industrial models
Screw design and internal configuration can be matched to the material and finished product
Suitable for packaging, train flooring, building panels and other sheet, board or profile applications

Since 1994, Hengrui has been dedicated to the design and manufacturing of customized plastic extrusion machines. We provide complete extrusion lines for producing plastic sheets, boards and films, processing materials including PP, PE, PS, PC, PMMA, PET, EVOH and ABS.
Our plastic extrusion systems cover applications from thin plastic sheets with a thickness of 0.02 mm to heavy-gauge boards up to 40 mm thick, with production widths exceeding 3 meters. With our portfolio of extruders, downstream equipment and extrusion lines, we provide customized plastic extrusion solutions for manufacturers and processors in food packaging, electronics, automotive, construction, furniture and other industrial applications.
