Extruders handle the central stage of plastic sheet and board production by melting, mixing and moving the raw material towards the die. Plastic pellets or other material first enter through the feeding section, there a rotating screw carries them forward inside a heated barrel. As the material moves through the barrel, it is gradually melted and mixed until it reaches the die, which shapes it into a continuous sheet, board or profile with the required dimensions. To choose the right extruder, it is necessary to consider the resin, required output and finished product specifications.

Since 1994, we have manufactured plastic extruders for both laboratory testing and industrial production, including single-screw, twin-screw and planetary roller models. We have more than 30 years of experience in manufacturing extruding lines and supporting machinery, and are capable of configuring each extruder according to the client’s material, required output and processing requirements.

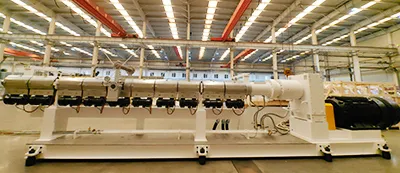

    1. Single-Screw Extruder
    2. Single-Screw Extruder Single-screw extruders are extrusion machines widely used in plastic processing, known for their cost-effectiveness, heavy-duty structural stability, and easy operation with minimal maintenance. They are ideal for general-purpose extrusion where consistent output and cost efficiency matter most. View details

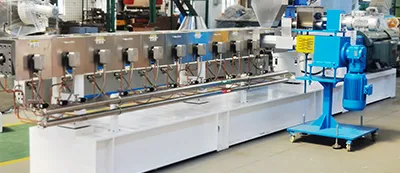

    1. Twin-Screw Extruder
    2. Twin-Screw Extruder Twin-screw extruders are the preferred choice for plastic compounding due to their superior mixing capability and precise process control. While more complex and costly than single-screw extruders, the twin-screw extrusion machines allow direct extrusion of complex polymer formulations. View details

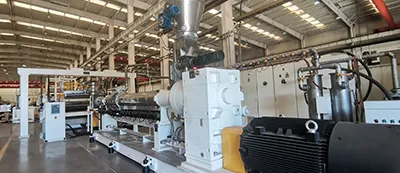

    1. Planetary Roller Extruder
    2. Planetary Roller Extruder Featuring a central spindle surrounded by multiple smaller planetary screws, this unique design delivers thin-layer rolling, kneading, and vacuum degassing. The planetary roller extruder processes materials gently at lower temperatures and offers optimal sheet quality. View details
Since 1994, Hengrui has been dedicated to the design and manufacturing of customized plastic extrusion machines. We provide complete extrusion lines for producing plastic sheets, boards and films, processing materials including PP, PE, PS, PC, PMMA, PET, EVOH and ABS.
Our plastic extrusion systems cover applications from thin plastic sheets with a thickness of 0.02 mm to heavy-gauge boards up to 40 mm thick, with production widths exceeding 3 meters. With our portfolio of extruders, downstream equipment and extrusion lines, we provide customized plastic extrusion solutions for manufacturers and processors in food packaging, electronics, automotive, construction, furniture and other industrial applications.
