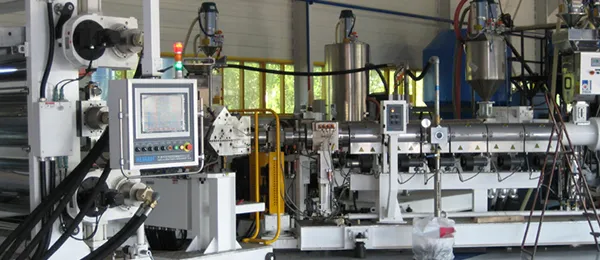

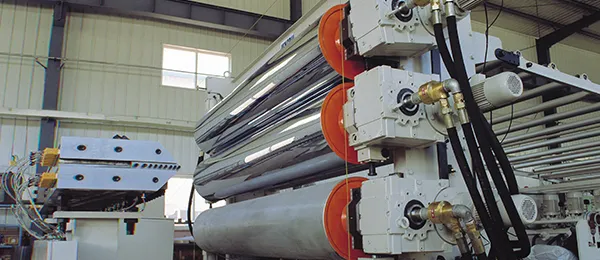

Plastic board and heavy-gauge sheet extrusion lines are used to produce single-layer or multilayer plastic boards with greater thickness and rigidity than standard sheets. Each extrusion line typically includes a feeding unit, extruder, screen changer, melt pump, flat die, calendering unit and cutting system to complete the process from material feeding to finished boards.

Our experience in large-format board extrusion started with the development of a 3200 mm-wide two-layer PVC co-extrusion line in 2002. Today, we are capable of manufacturing board extrusion lines with widths of 3250 mm and above, supporting finished board thicknesses from 2 to 40 mm for applications in household appliances, automotive components, construction materials, chemical processing and other industrial fields.

We manufacture the main structural components and electrical control systems in-house to make sure there is consistent quality throughout the production process. More than 90% of our extrusion lines can start stable mass production after commissioning, and the equipment has proven reliable over long periods of operation. Some units delivered more than 20 years ago are still running today.

Specifications
Max. Sheet Width 1000–3000 mm and above
Finished Sheet Thickness 2–40 mm
Max. Output 1500 kg/h
Layer Configuration Mono-Layer to 5-layer co-extrusion
Compatible Materials ABS, PMMA, PC, PVC, HDPE, PP and PS
Applications
  • Transportation
    Extra-wide boards for railway and vehicle flooring, available with smooth or embossed surfaces formed during production
  • Construction

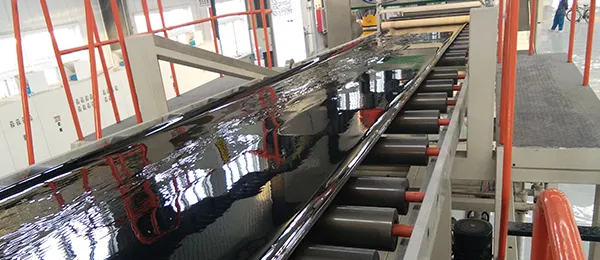

    Waterproofing membranes, geogrids and other plastic products used in building and civil engineering projects
  • Home Appliances and Chemical Processing
    Refrigerator liners, appliance housings and corrosion-resistant linings for large chemical tanks
  • Commercial and Decorative Products
    High-gloss PMMA and PC boards, bathroom panels, furniture surfaces, advertising signs and luggage shells

We develop each extrusion line through a 1:1 customized design process based on the client’s material, required output and finished board specifications. For extra-wide board projects, our engineers can recommend a suitable extrusion setup based on the product and processing needs.

The extrusion lines below are a selection of the many extrusion systems we have supplied to clients worldwide.
Since 1994, Hengrui has been dedicated to the design and manufacturing of customized plastic extrusion machines. We provide complete extrusion lines for producing plastic sheets, boards and films, processing materials including PP, PE, PS, PC, PMMA, PET, EVOH and ABS.
Our plastic extrusion systems cover applications from thin plastic sheets with a thickness of 0.02 mm to heavy-gauge boards up to 40 mm thick, with production widths exceeding 3 meters. With our portfolio of extruders, downstream equipment and extrusion lines, we provide customized plastic extrusion solutions for manufacturers and processors in food packaging, electronics, automotive, construction, furniture and other industrial applications.
